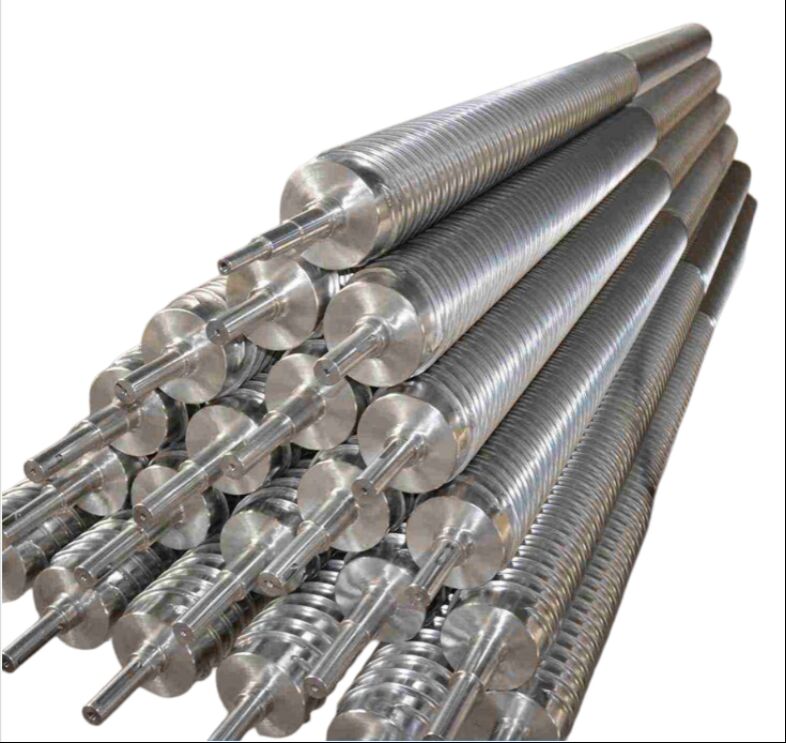

Aluminium Alloy Open-Width Roll Cylinder Expanding Roller Opener

Aluminium Alloy Open-Width Roll Cylinder Expanding Roller Opener

Dimensions and parameters:

Aluminium alloy open-width roll -(aluminium alloy moving sheet flattening roll)

The structure principle is mainly composed of outer arc aluminum alloy hollow piece, roller, tilt wheel and spindle.Three groups of curved aluminum alloy hollow pieces are arranged on the surface of the roller. The middle group is fixed on the roller. Each group on both sides is embedded in the holes and grooves of the roller.

When the sheet rotates with the roller, the sheet drives the tilting wheel to rotate, and the tilting wheel drives the sheet to move outward and inward.The sheet moves outward from 0° to 180° and back from 180° to 360°.When the substrate is wrapped around the sheet from 0° to 180°, it is flattened by axial stretching of the outward-moving sheet.

Textile Machinery Spare Parts Special

The double acting cylinder is more common than the single acting cylinder. It works at any angle and in

almost any application where hydraulic power is needed. Even with applications where gravity (or weight)

can assist retraction, hydraulic pressure is often applied to control acceleration, change the rate of travel

and cushion the stoppage.

Packaging & Delivery

Packaging Detail: Special type wooden boxes, fumigation will be done and certificate will be submitted

along with export documents. Packing dimensions will be based on size of the cylinders. Cyls will be

wrapped with bubble sheet and packed in special type export wooden boxes. Boxes will be wrapped with

export seal.

Delivery Detail: Based on product type and quantity
