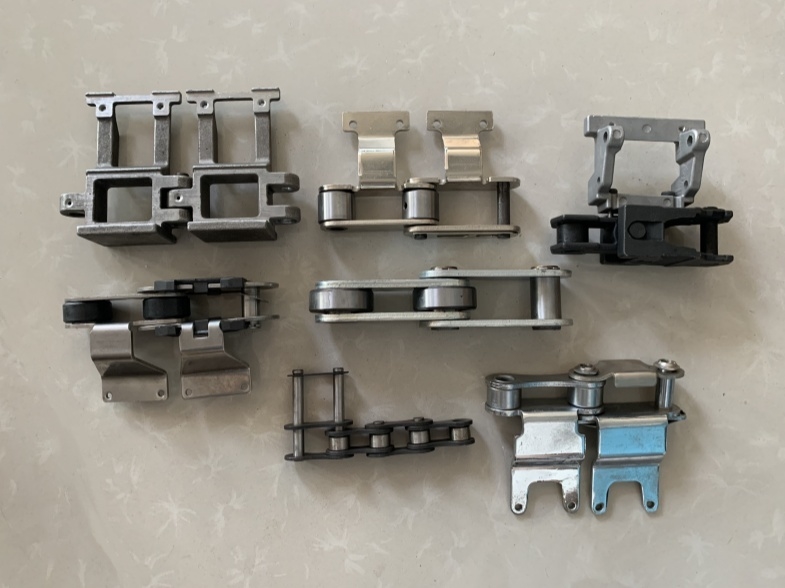

Steel Stenter Clip Chain for Textile Finishing Machinery

Stenter Machine Parts Clips Link Chain Dyeing Finishing Mechanical Accessories

Properly seasoned Cast Iron chain rail guides are provided to support the moving pin clip chain.

They are strong and distortion free even when operating at elevated operating temperatures and at speeds in excess of 150 meters per min. Various combination of entry and exit chain rails are supplied for different applications. Extended entry rail track up to 6.3 meters can be provided which can support the Fabric feeding device, the Steaming device, Selvedge Gumming and pre-drying unit etc. Extended exit rail tracks up to 5.8 meters length can support the conventional Air Cooling zone, Selvedge Trimmer, Chain cleaning device etc.

Competitive Advantage:

good quality

Short delivery cycle

long operating life

reusable

wear well

Textile Machinery Spares​ Specifications:

1. Single purpose Clip
BC-10 Fomer West Germany BABCOCK Heat Setting Range,Japan lchikinHeat
Setting Machine, Fomer West Germany FAMATEX Senter
BC-20 Fomer West Germany Artos Heat Setting Machine

2. Dual purpose Pin-Clip
BC-10 Fomer West Germany BABCOCK Heat Setting Range,Japan lchikin Heat
Setting Machine, Fomer West Germany FAMATEX Senter

Our spare parts are suitable for many machines such as stenter,mercerizing machine,carpet machine,artificial leather machine.


Description:

The steel shoe holding the clips are fitted with sintered metal liners and connected with steel links. The roller chain glides smoothly on special cast iron rails. The superb sliding properties of sintered metal considerably reduces lubrication requirements even at the high heat setting temperatures, thus ensuring safe operation and long life. On request, the machine can be equipped with special polymer liners for lubrication free working. Optima 2610 is equipped with a vertical return pin chain.

Applications:

Pin clip suitable for stenter frames

carpet machine, artificial leather machine, coating machine, ager, oxygen bleaching range and flat screen printing machine. The main products are clip, chain, pin holder, pin plate, doctor, doctor bracket, end ring.
