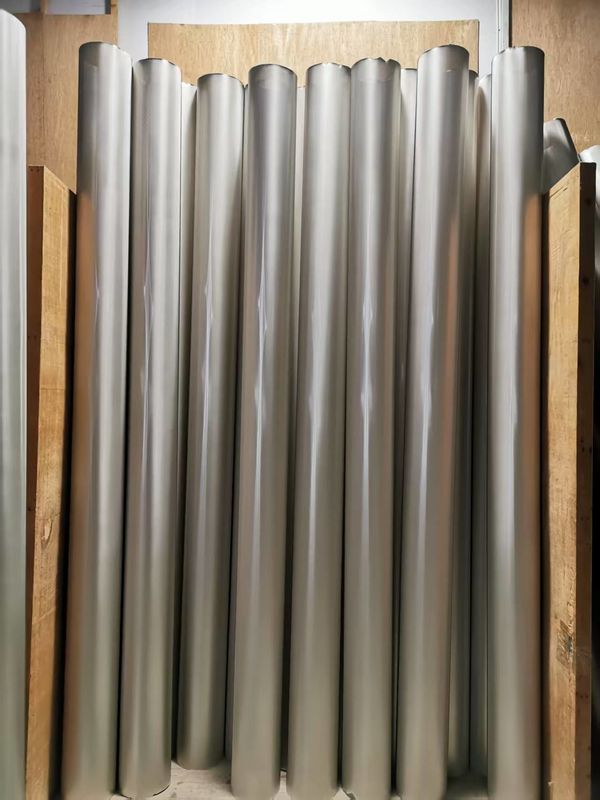

640 819MM Rotary Nickel Screen Textile Screen Nickel Rotary Screen Printing Parts
| Repeat(mm) |
640 819 |
| Mesh |
Thickneee(μm) |
Open Area% |
Hole Diameter |
| 105 |
105-110 |
15-17 |
94 |
| 125 |
100-105 |
14-16 |
79 |
| 165 |
100-105 |
12-13 |
71 |
| 195 |
100-105 |
15-16 |
52 |
Brittleless: use of sulphur-free additive at screen-making process enables non-existence of brittleness of screen during/after the rounding and polymerization process. Brittleness is the main cause of screen crack and damage on the rotary printing machine win operation.A convenient way to test the brittleness is the so-called "lighter test": a piece of screen sample burnt by lighter flame for 10seconds, bend the screens sample to see if it breaks at the burnt spot.
product advantage:
More tough and tensile, safely operation and multiple use
Good symmetrical, good conglutination function of photosensitive medicament
orderliness and accurate screen caves, good dye output and osmotic function
higherstrength, longer life sceen
Nickel screen for screen printing machine
Our mesh with competitive prices.
Rotary Screen Printing Open area up to 18% ,there is no factory in china can make it except our factory,it help smooththroughout of dyestuff paste, so that printing speed and efficiency of printingmachine can be ascended,experiments have proved that up to 19% of paste volumecan be saved at multiple printing mills around the world.
Rotary Screen Printing Use 5-6 times stripping by waterjet or LEN,bycollecting the data from thousand of experiments.Our screen also SULFUR-FREEand with excellent brittleness,a convenientway to test the brittleness is the so-called "lighter test": a pieceof screen sample burnt by lighter flame for 10 seconds, bend the screens sampleto see if it breaks at the burnt spot.
