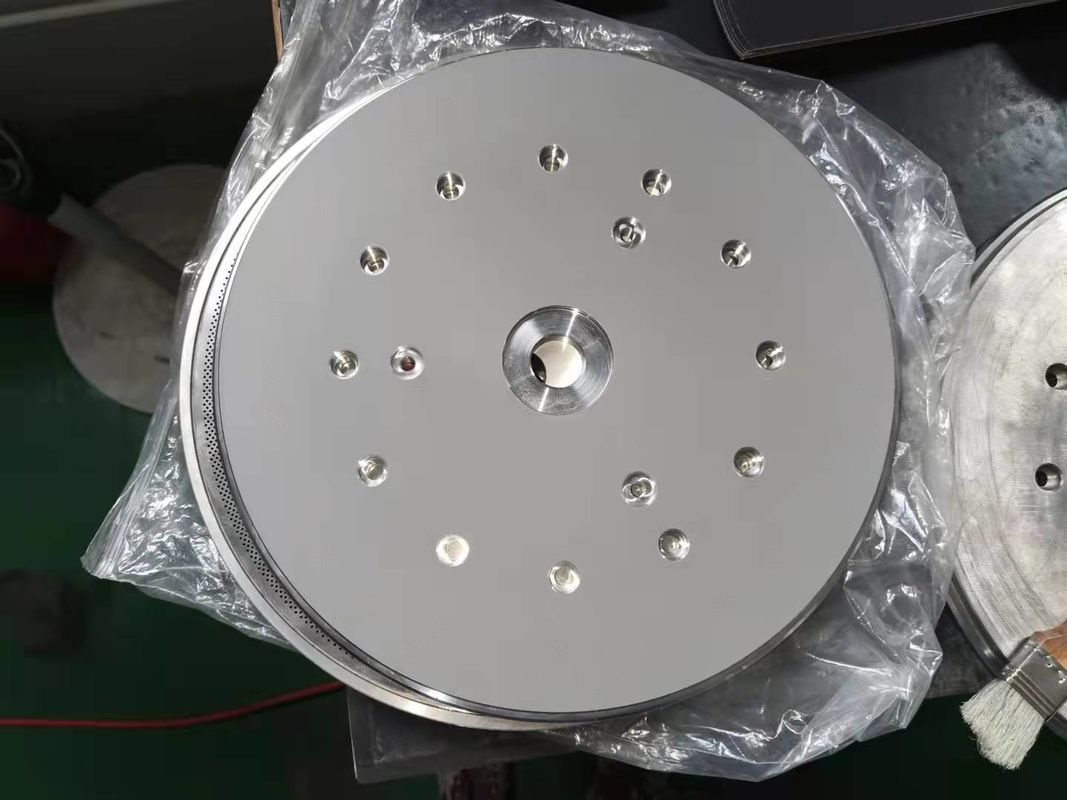

Textile Machine Spinneret Corrosion Resistant Staple Fiber Hollow Fiber

Textile Machine Spinneret Corrosion Resistant Staple Fiber Hollow Fiber

Advantage:

1. The spinneret can form a uniform spray on the surface of the fabric, so as to achieve uniformity and perfection of dyeing and printing.
2. The electronic control system of the spinneret can accurately control the color depth and pattern shape by adjusting the nozzle position and flow rate.
3. Spinneret has high production efficiency and can quickly process large quantities of textiles.

Product detials:

(1) ordinary type, which can be divided into melt spun spinneret (its shape is round, rectangular, fan) and wet spun spinneret (also known as spinneret cap);

(2) Special-shaped spinneret, the cross-section of the spun fiber is non-circular;

(3) Composite spinneret to manufacture composite fibers.

Fiber spinneret :

The utility model relates to the field of hollow fiber membrane. Specifically refers to a production of single wire porous hollow fiber membrane spinning head assembly, the component including the multi-tube spinneret needle, flat, base of the spinneret, the spinneret the middle, the core solution and the solution connecting parts described in the taper part of the multi-tube needle firmly plugged into the base of the taper part of the spinneret, the spinneret with a screw base and the middle spinneret connection, and screw the cover plate and the middle spinneret connected and make more tube penetration of the needle cover all the small hole in the pipe, imports of parts to the solution screwed into the middle of the spinneret, the core fluid inlet connection parts screwed into the spinneret base.

Competitive Advantage:

Skillful Welding and Maching. Quality Guaranteed.
Resistant to high pressure, high temperature and corrosion.
Best Size and type will be provided by technical team based on the knowledge of the

Specification:

​Spinneret for solid fiber (1.5D to 15D)
Spinneret for Hollow fiber(3D to 15D)
Spinneret for Solid Fiber(PSF)
Our company professionally produces variety of Spinneret for spinning chemical fiber ranging from three-dimensional fiber, 2-dimensional fiber, cotton type fiber, wool type fiber, bi-component fiber and so on.
Spinneret for hollow fiber or solid fiber.
1. Type: hollow and solid.
2. Denier:1D-15D
(1.5D to 15D).


Technical Specifications

1. Minimum capillary diameter 0.15mm.

2. Manufacturing tolerances:

Capillary diameter: ±0.002mm

Capillary length: ±0.02mm

3. Capillary length and diameter (L/D):

0.15mm 0.20mm ≤4/1

0.20mm 0.30mm ≤5/1

0.30mm 0.50mm ≤6/1

Over 0.5mm ≤20/1

4. Surface roughness of exit side: ≤Rz 0.8



Applications:

A. Differential Fiber.
B. Non-Woven ( PP /PPMB Spun Bonded)
C. Composite Fiber.
D. For Filament Yarn, both Mono-filament and Multi-filament.
E. Nylon
F. Staple Fiber.
Used as a necessary spinning machine part.
