Place of Origin | CHINA |
Brand Name | LIAGNRU |
Certification | ISO |
Model Number | 640 |

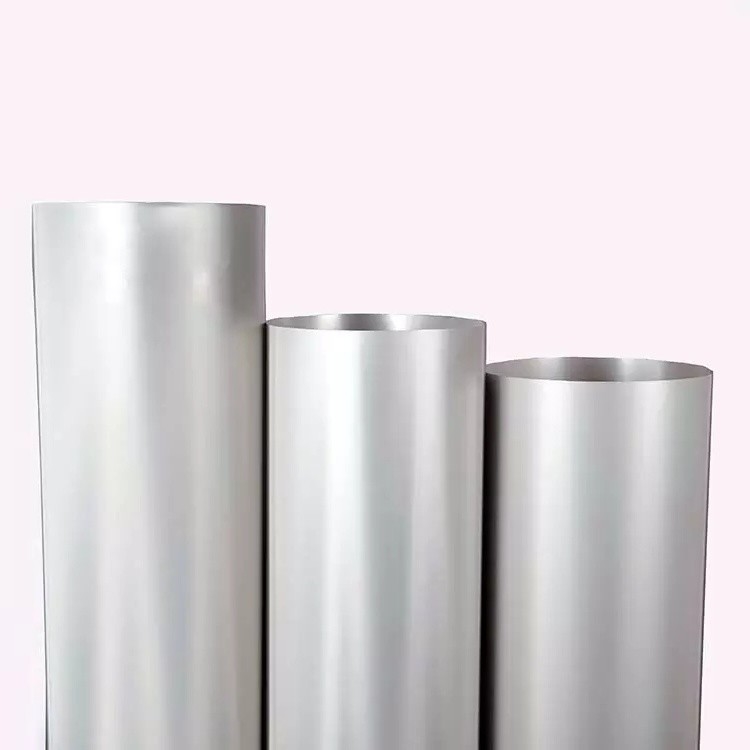

Textile Printing Higher Strength 640m Rotary Nickel Screen
Mesh Count:25,30,40,50,60,70,80,100,125,135,155,165,up to 195 mesh count.
Screen Repeat:640,725,819 ,914,1018,1206,1450,1680mm
Length:1000 mm to 3500 mm.
Repeat(mm) | 640 725 819 914 1018 1206 1450 1680 2400 | ||
Mesh | Thickness(μm) | Open Area(%) | Hole Diameter |
80 | 110-115 | 16-18 | 105 |
100 | 105-110 | 15-17 | 74 |
125 | 100-105 | 14-16 | 79 |
165 | 100-105 | 12-13 | 71 |
Advantage:
Use 5-6 times stripping by water jet or LEN,by collecting the data from thousand of experiments.Our screen also SULFUR-FREE and with excellent brittleness,a convenient way to test the brittleness is the so-called "lighter test": a piece of screen sample burnt by lighter flame for 10 seconds, bend the screens sample to see if it breaks at the burnt spot. our screens will not broken.
• Good tenacity
• High strength
• Holes in order and accurate
• Even screen wall
• Consistent quality
• Screen durable
Nickel screen with variety specifications and good tenacity,can be repeatly used for several times, suitable for any kind of dyestuff,with even infiltration,it can fit and pattern, specially good at supper fine pattern.
Length (mm) 1410-3500
For other specification can be customized separately
Features:
High open area, good elasticity and toughness, less blocking, can reduce the quantity of Raw Material and improve precision of printing. The liquid will flow smooth, and then it will show a beautiful result in printing.
1) Good toughness:
2) Safe and stable operation
3) High strength:
4) Long life for screens
5) Precision mesh hole:
6) Excellent permeability
7) Uniformity
8) Perfect adhesivity for photo emulsion
9) Stable quality
10) Even printing and design guaranteed
production process:
