Place of Origin | CHINA |
Brand Name | LR |
Certification | ISO |
Model Number | 85M |
Special 125&155 mesh screen advantages
1.125 Mesh open area can reach 18%, 155 Mesh open area can reach 14%, will save 19% dyestuff
2.Thickness can reach 115 μm, Screen are more durable, can be stripped And re-used for 7 to 8 times
3.Better brittleness, not easy to be broken off after baked at 200°C for 2 hours in the polymerizing machine.
4.Printing machine running speed improved, Pulp permeability improved 20-30%,so have better Productive efficiency.
5.Vibration is less than 0. 3mm on the engraving machine, So can ensure the accuracy of print registration and color Evenness
6.Particularly suitable for wax and wallpaper printing special industries.
7.Can replace(even exceed )125 mesh or special screen made in Europe.
Our rotary screen advantage:
We are the leading manufacturer for the following products in China.

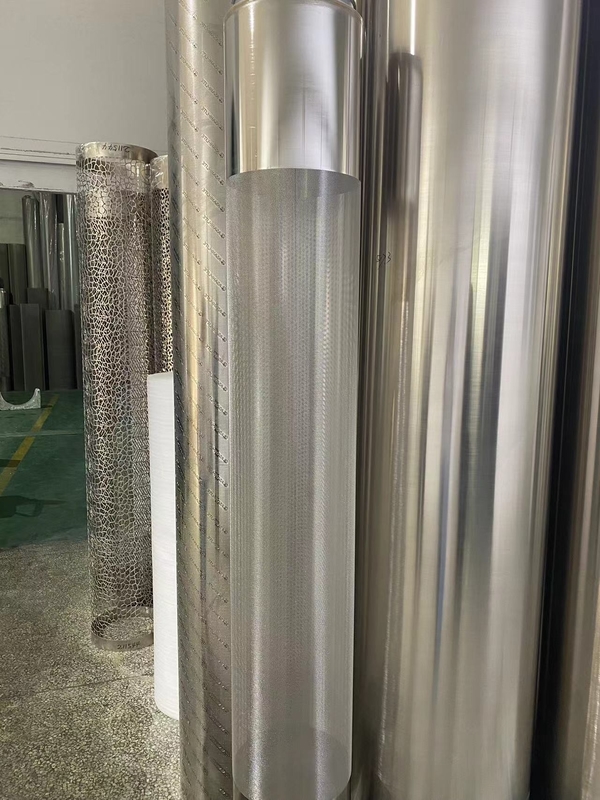

rotary screens for textile printing, endring, photo emulsion, polyester screens
and other spare parts for textile printing and finishing machines. Our rotary screen will not broken ,Our quality for rotary screens is number 1 in China as our technician and engineers are trained by best Technicians, but price is very very competive. so you don’t worry about our quality.
Open area up to 18% ,there is no factory in china can make it except our factory,it help smooth throughout of dyestuff paste, so that printing speed and efficiency of printing machine can be ascended,experiments have proved that up to 19% of paste volume can be saved at multiple printing mills around the world.
Use 5-6 times stripping by water jet or LEN,by collecting the data from thousand of experiments.Our screen also SULFUR-FREE and with excellent brittleness,a convenient way to test the brittleness is the so-called "lighter test": a piece of screen sample burnt by lighter flame for 10 seconds, bend the screens sample to see if it breaks at the burnt spot. our screens will not broken.
Thickness:11.5microns
Our quality is No.1 in china,even Chinese RMB paper currency also use our screen,so i am sure if you buy our screen,it absolutely will save a lot of money for your company.
What is rotary screen printing?
In rotary printing, the web travels at a consistent speed between the screen and a steel or rubber impression roller immediately below the screen. (The impression roller serves the same function as the press bed on a flatbed press.) As the web passes through the rotary unit, the screen spins at a rate that identically matches the speed of substrate movement.
Rotary screen printing is so named because it uses a cylindrical screen that rotates in a fixed position rather than a flat screen that is raised and lowered over the same print location. Rotary presses place the squeegee within the screen. These machines are designed for roll-to-roll (web) printing on flexible materials ranging from narrow web films to wide-format roll textiles.
Package:plywood cases or as you required
