Place of Origin | CHINA |
Brand Name | LIANGRU |
Certification | ISO |
Model Number | 640 |
Repeat(mm) | 640 725 819 914 1018 1206 1450 1680 2400 | ||
Mesh | Thickness(μm) | Open Area(%) | Hole DIameter |
125 | 100-105 | 14-16 | 79 |
165 | 100-105 | 12-13 | 71 |
Advantage of our screens:
Brittleness: use of sulphur-free additive at screen-making process enables non-existence of brittleness of screens during/after the rounding and polymerization process. Brittleness is the main cause of screen crack and damage on the rotary printing machine win operation. A convenient way to test the brittleness is the so-called "lighter rest": a piece of screen sample burnt by lighter flame for 10 seconds, bend the screens sample to see if it breaks at the burnt spot.
Features:
Open area up to 18% ,there is no factory in china can make it except our factory,it help smooth throughout of dyestuff paste, so that printing speed and efficiency of printing machine can be ascended,experiments have proved that up to 19% of paste volume can be saved at multiple printing mills around the world.
Use 5-6 times stripping by water jet or LEN,by collecting the data from thousand of experiments.Our screen also SULFUR-FREE and with excellent brittleness,a convenient way to test the brittleness is the so-called "lighter test": a piece of screen sample burnt by lighter flame for 10 seconds, bend the screens sample to see if it breaks at the burnt spot. our screens will not broken.
Description:

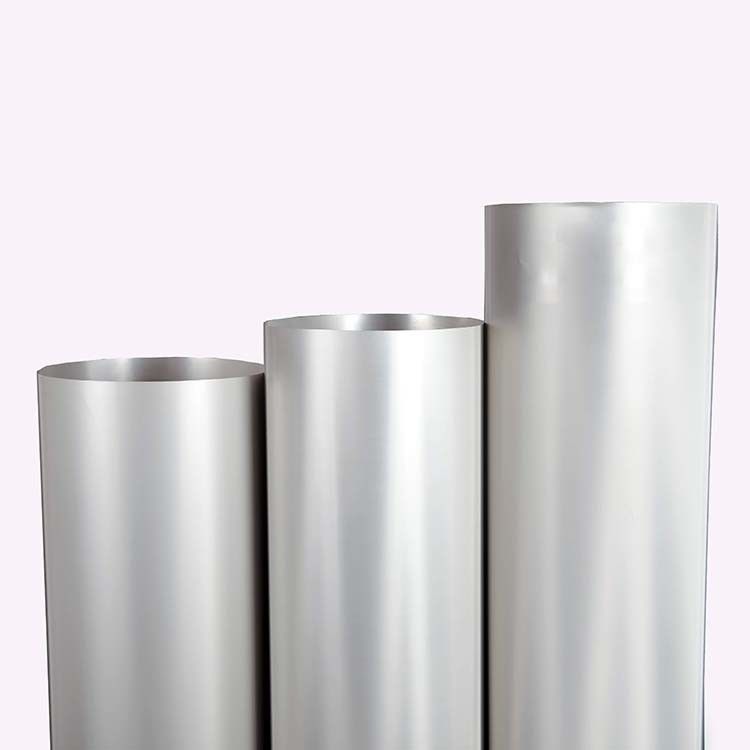

High Mesh Nickel Screen(Mesh 135,165)
Your smart purchase for fantastic pattern
High mesh nickel screens bring a different pace and intensity to the printing industry,which
set a whole new benchmark for fine print technology.
A roller or squeegee is moved across the screen stencil, forcing or pumping ink past the threads of the woven mesh in the open areas.Screen printing is sprinting technique that uses a woven mesh to support an ink-blocking stencil. The attached stencil forms open areas a of mesh that transfer ink or other printable materials which can be pressed through the mesh as a sharp-edged image onto a substrate.
Shipping
1. If you are urgent, we will send to you by DHL, UPS, FedEx or TNT.
2. If the products are very heavy, we will send to you by air or by sea.
