|Place of Origin:||CHINA|
|Minimum Order Quantity:||negotiable|
|Packaging Details:||plywood cases or as you required|
|Payment Terms:||T/T,L/C or others|
|Supply Ability:||sufficient supply|
|Name:||Rotary Nickel Screen||REPEAT(mm):||640,725,819,914,1018,1206,1450,1680|
|Useage:||Textile Printing Machinery|
textile screen printing,
textile rotary screen,

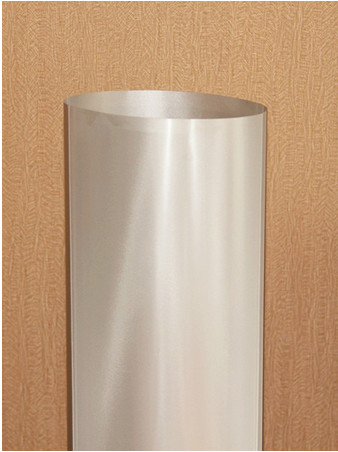

Textile Machinery Rotary Nickel Screen
Textile Machinery Parts Standard Rotary Nickel Screen Rotary Screen
rotary printing repeat size
Rotary Nickel Screen specifications:
|Mesh(holes/inch)||Thickness(μm)||Hole diameter||Open Area(%)|
Repeat(mm): 640, 673, 819, 914, 1018
For other specifications or flower-shaped pattern can be manufacturing-to-order against offered sample.
Our Services: 25 mesh,30mesh,40mesh,50mesh,60mesh,70mesh,80mesh,
The repeat is from 640mm,688mm,725mm,819mm,914mm
1018mm,1206mm,1450mm and 1680mm)
The length is from 1410mm to 3500mm.
screens for screen printing
Our Rotary Nickel Screen advantage:
•More tough and tensile, safely operation and multiple use
•orderliness and accurate screen caves, good dye output and osmotic function
•Good symmetrical, good conglutination function of photosensitive medicament
Rotary Nickel Screen Open area up to 18% ,there is no factory in china can make it except our factory,it help smooth throughout of dyestuff paste, so that printing speed and efficiency of printing machine can be ascended,experiments have proved that up to 19% of paste volume can be saved at multiple printing mills around the world.
Use 8-10 times stripping by water jet or LEN,by collecting the data from thousand of experiments.Our screen also SULFUR-FREE and with excellent brittleness,a convenient way to test the brittleness is the so-called "lighter test": a piece of screen sample burnt by lighter flame for 10 seconds, bend the screens sample to see if it breaks at the burnt spot. our screens will not broken.
Our raw material of nickel is high purity and with less sulfur. Match it with high quality pure additives. Our products has unparalleled excellence performance. Printing ink penetration uniform, Photo emulsion and Sensitizer adhesion is strong bonding, high toughness, high elasticity, good thickness and uniform open area.
