Rotary Printing Screen
>
|
|
| Place of Origin | CHINA |
| Brand Name | LR |
| Certification | ISO9001 |
| Model Number | LR |

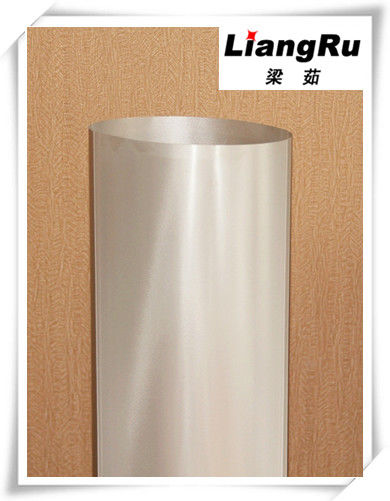

Hight Strenght Rotary Screen Printing Standard Screen Printing Variety
Open area up to 18% ,there is no factory in china can make it except our factory,it help smooth through out of dyestuff paste, so that printing speed and efficiency of printing machine can be ascended,experiments have proved that up to 19% of paste volume can be saved at multiple printing mills around the world.
Use 8-10 times stripping by water jet or LEN,by collecting the data from thousand of experiments.Our screen also SULFUR-FREE and with excellent brittleness,a convenient way to test the brittleness is the so-called "lighter test": a piece of screen sample burnt by lighter flame for 10 seconds, bend the screens sample to see if it breaks at the burnt spot.
Product Application:
Nickel screen is suitable for oil, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and other industries. Nickel silk is woven into various specifications and fabrics. It has good acid resistance, alkali resistance, high temperature resistance and so on
Advantage:
•More tough and tensile, safely operation and multiple use
•orderliness and accurate screen caves, good dye output and osmotic function
•Good symmetrical, good conglutination function of photosensitive medicament
Screen specification:
| Repeat | 640 725 819 914 1018 1206 1450 1680 | ||
| Mesh | Thicknss(μm) | Open Area(%) | Hole Diameter |
|
70 |
110-115 |
16-18 |
131 |
|
80 |
110-115 | 16-18 | 105 |
| 100 | 105-110 | 15-17 | 74 |
| 125 | 100-105 | 14-16 | 79 |
| 125V | 100-105 | 14-16 | 79 |
| 155 | 100-105 | 12-13 | 60 |
| 165 | 100-105 | 12-13 | 71 |
| 195 | 100-105 | 15-16 | 52 |
Use:
This product is for new type rotary printing machine. After install endring on two ends and engraved designs on it, we can put the rotary screen on machine. Suitable for print cotton, silk, polyester, wall paper and etc.
Our raw material of nickel is high purity and with less sulfur. Match it with high quality pure additives. Our products has unparalleled excellence performance. Printing ink penetration uniform, Photo emulsion and Sensitizer adhesion is strong bonding, high toughness, high elasticity, good thickness and uniform open area.
Raw Material :
99.99% Purity JNMC Nickel-Balls to Gurantee the Plating Quality.
Our rotary nickel screens are in uniform pen area, good toughness and elasticity, uniform transmission of light, Can effectively prevent the printing color difference, uniform thickness, high quality of printing. Strong elasticity make safe operation, Durability, high strength, long life of printing rotary screen mesh, uniform net hole, Precision output pigment, good penetrating quality, high bonding of photo emulsion, printing effect uniform and beautiful
Shipping
1. If you are urgent, we will send to you by DHL, UPS, FedEx or TNT.
2. If the products are very heavy, we will send to you by air or by sea.
