195M Toughness Rotary Nickel Screen Safely Operation And Multiple Use
  • 195M Toughness Rotary Nickel Screen Safely Operation And Multiple Use
  • 195M Toughness Rotary Nickel Screen Safely Operation And Multiple Use

195M Toughness Rotary Nickel Screen Safely Operation And Multiple Use

Place of Origin China
Brand Name LIAGNRU
Certification ISO
Model Number 195m
Product Details
Product Keywords:
Rotary Table For Screen Printing
Place Of Origin:
High Light:

textile screen printing


textile rotary screen


195M Toughness Rotary Nickel Screen

Product Description

195M Good Toughness Rotary Nickel Screen Elasticity Weaving Machine Spare Parts


Nickel we used for screen making is very pure around 99.996%.

Lirong Nickel Screen can provide the best printing result for different designs and fabrics, good penetration performance with all types of dye. All our nickel screens can be used 5-6 times repeatedly in proper strip way.


Use 5-6 times stripping by water jet or LEN,by collecting the data from thousand of experiments.Our screen also SULFUR-FREE and with excellent brittleness,a convenient way to test the brittleness is the so-called "lighter test": a piece of screen sample burnt by lighter flame for 10 seconds, bend the screens sample to see if it breaks at the burnt spot. our screens will not broken.


Repeat(mm) 640 725 819 914 1018 1206 1450 1680
Mesh Thickness(μm) Open Area(%) Hole Diameter
195 100-105 15-16 52


Production details:

Rotary Nickel Screen, circumference (e.i.640,819,914,1018mm), mesh(from 14 to 185),length(from 1450 to 3500mm).

Rotary nickel screen: we can supply various nickel screens
a) Circumference: 640mm, 819mm, 914mm and 1018mm
b) Mesh: from 14 to 185
c) Length: from 1450mm to 3500mm
d) Characteristic of uniform transparency, high open area, good toughness and elasticity,can be used for 5~7 times repeatedly, saving dyestuff, bear high temperature
e) Suitable for printing on cloth and other fibers in textile industries and wallpaper printing industries




•More tough and tensile, safely operation and multiple use

•orderliness and accurate screen caves, good dye output and osmotic function

•Good symmetrical, good conglutination function of photosensitive medicament



What is rotary screen printing?


Rotary screen printing is so named because it uses a cylindrical screen that rotates in a fixed position rather than a flat screen that is raised and lowered over the same print location. Rotary presses place the squeegee within the screen. These machines are designed for roll-to-roll (web) printing on flexible materials ranging from narrow web films to wide-format roll textiles.

The substrate may continue through a drying unit after printing. Subsequently, it may be directed to a rewinding unit or on to another printing or finishing operation configured inline with the rotary press. With standalone flatbeds and multicolor in-line systems, getting the printed sheets to other finishing areas usually requires more cumbersome and time-consuming manual handling methods.

The squeegee on a rotary press is in a fixed position with its edge making contact with the inside surface of the screen precisely at the point where the screen, substrate, and impression roller come together (Figure 1). Ink is automatically fed into the center of the screen and collects in a wedge-shaped "well" formed by the leading side of the squeegee and the screen's interior surface. The motion of the screen causes this bead of ink to roll, which forces ink into stencil openings, essentially flooding the screen without requiring a floodbar. The squeegee then shears the ink as the stencil and substrate come into contact, allowing the ink to transfer cleanly to the material.


In short, rotary printing is a continuous, stepless image-transfer method. The geometry of the screen and the position of the squeegee within the screen combine to provide both the screen-flooding and image-transfer functions in a single smooth operation that repeats with every revolution of the screen.


In rotary printing, the web travels at a consistent speed between the screen and a steel or rubber impression roller immediately below the screen. (The impression roller serves the same function as the press bed on a flatbed press.) As the web passes through the rotary unit, the screen spins at a rate that identically matches the speed of substrate movement.

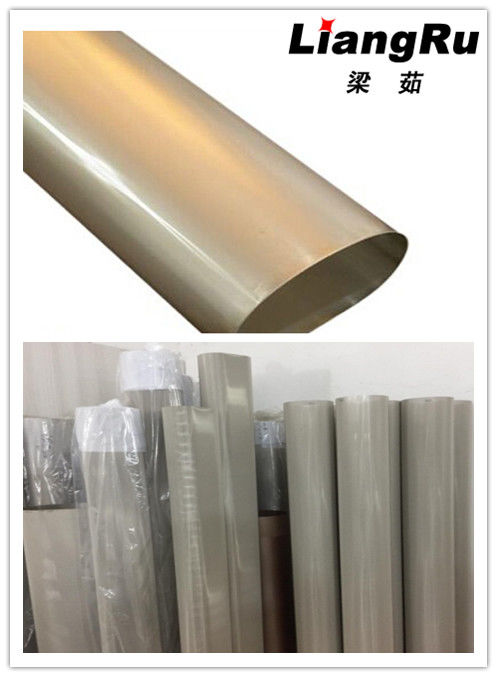

195M Toughness Rotary Nickel Screen Safely Operation And Multiple Use 0

195M Toughness Rotary Nickel Screen Safely Operation And Multiple Use 1
